BIOTIC Series
The BIOTIC is a high-load class of industrial robots with lightweight construction and excellent control technology that significantly increases productivity per unit time. In addition, powerful drives and a wide range of optional configurations ensure
Features
The BIOTIC series stands proud in the high-load industrial sector. CHAIFU industrial robots offer flexible cost
savings and high-performance solutions. It is ideally suited for tasks with loads up to 210 kg.
For this reason, it is particularly suitable for handling, palletizing, submerged arc welding, picking/packaging,
and assembly/distribution applications. The performance is excellent in terms of space,
availability, repeatability, and repeatability.
Outstanding Choice in its Class
With the unique design of the powerful servo system, the BIOTIC series reduces machining times and achieves extremely high throughput as a result.
Proven Intelligent Programming
The BIOTIC can use vision tracking, force sensors, autonomous learning, and various the latest intelligent programs.
Robustness
The independently developed software package allows you to find your needs more precisely and give it your all at the factory.
Wet Protection
The BIOTIC series is IP 65 rated and can be used 24 hours a day in wet environments.

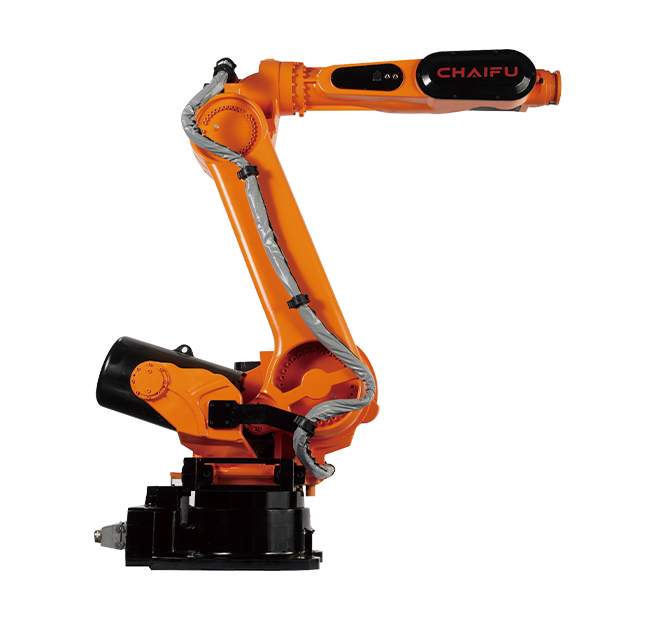

SF210-K2650 Specifications
Maximum Radius:
2650 mm
Payload:
210 kg
Repeatability:
± 0.3 mm
Protection Rating:
IP 65
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.
BIOTIC Data Overview
SF210-K2650 | ||
|---|---|---|
Structure | Vertically Articulated | |
Number of Axis | 6 | |
Radius | 2650mm | |
Payload | 210kg | |
Repeatability | ±0.12mm | |
Drive Mode | AC Servo Motor | |
Maximum Speed | J1 J2 J3 J4 J5 J6 | 110°/s 83°/s 99°/s 158°/s 206°/s 300°/s |
Range of Motion | J1 J2 J3 J4 J5 J6 | ±180° +50°/-75° +90°/-70° ±185° ±120° ±360° |
Allowable Moment | J4 J5 J6 | 1301N·m 1301N·m 706N·m |
Allowable Inertia | J4 J5 J6 | 138kg·m2 138kg·m2 70kg·m2 |
Protection Rating | IP 65 | |
Operating Conditions | Temp. Humidity Vibration Other | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise |
Base Size | 750*520mm | |
Height | 2257.5mm | |
Weight | 1460kg | |
Mounting Positions | Floor | |
Power Consumption | 7.5kVA | |
Applications
Advantages
Work Space Maximization
Maximizes available space and works with maximum precision, ensuring high accuracy and production quality.
Ultimate Precision
Extremely fast and precise, the BIOTIC series industrial robots have a repeatability of 0.3 mm, allowing them to take full advantage of their performance even at high operating speeds.
System Versatility
A wide range of individually developed software packages allows you to find your needs more precisely.
Robust in a Wide Range of Work Environments
24/7 availability over the entire temperature range from 0° to 45° C.
Robust Protection
Continuous operation in environments with Relative Humidity (RH) less than or equal to 95%.
Core Technology
With the three core components of the CHAIFU, the BIOTIC is the lowest purchase price in the industry.
