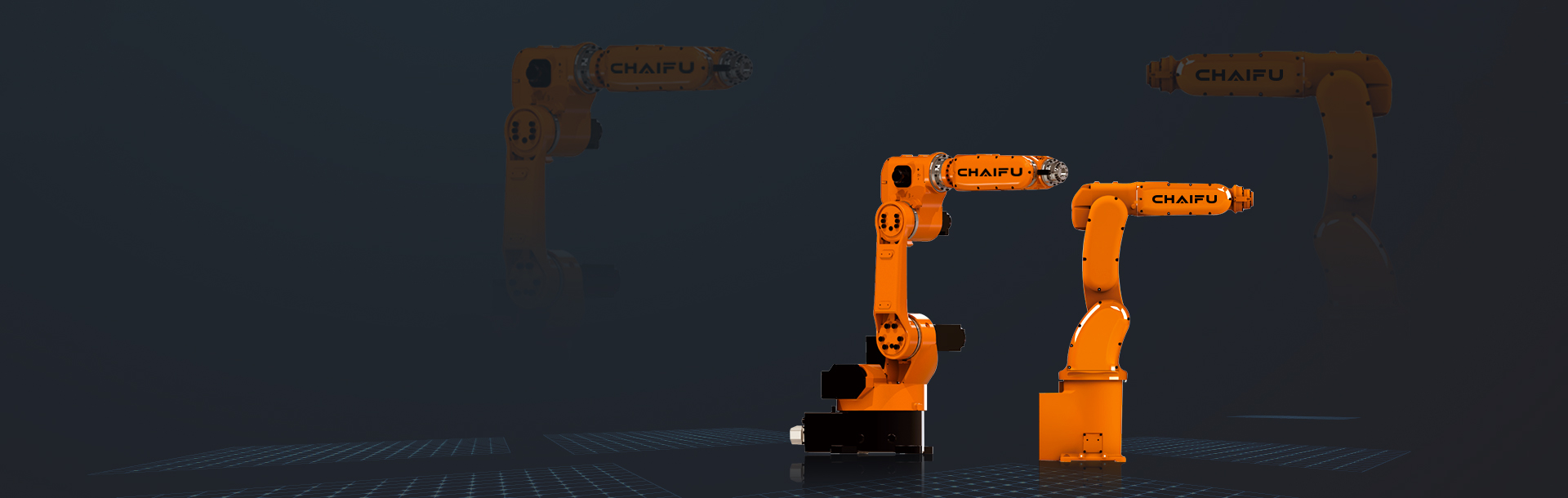

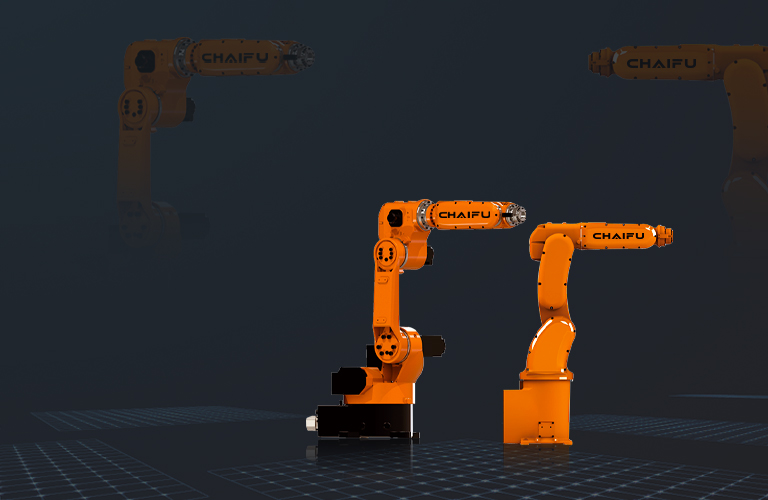

PRENTIC Series
The ultra-compact PRENTIC series are compact and flexible tabletop robots that are powerful, fast, and efficient, enabling extremely precise and agile robots for various applications in the medium load class, no matter how small the parts are.
Features
PRENTIC has a maximum load capacity of 8 kg and an arm span of 911.5 mm. With the introduction of the PRENTIC series
We are redefining the benchmark for robots in the tabletop class below 8 kg.
The PRENTIC series is ideal for applications in tight spaces such as 3C, handling, painting, welding, pick/pack, and assembly/distribution.
This desktop-class robot is tailored for the pursuit of performance and throughput.
Ultra-High Precision
With the ultra-precise LIKEPRECISION RV Joint Reducer, you can perform delicate tasks that no other robot can do.
Robustness
PRENTIC enables fast commissioning and installation in various complex angles of workstations.
Ultra-compact
Maximum performance in minimum space.
Protection
The PRENTIC series is IP 65 rated for 24-hour standby in wet environments.

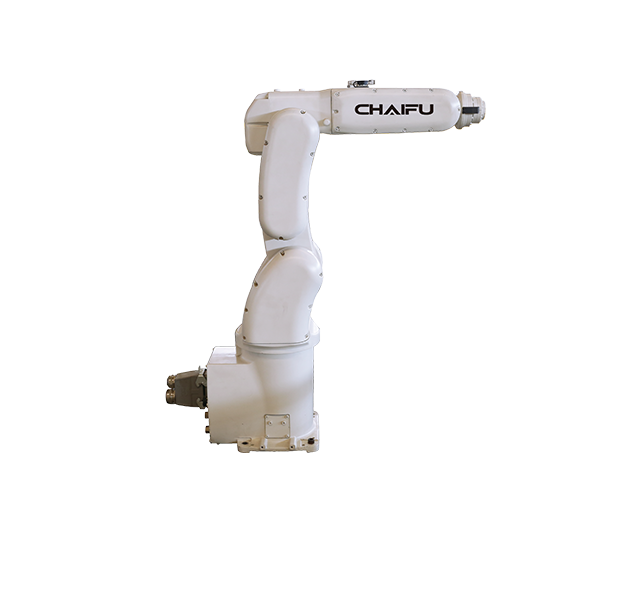

SF7-K759 Specifications
Maximum radius：
759 mm
Payload：
7 kg
Repeatability：
± 0.04 mm
Protection Rating：
IP 65
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.

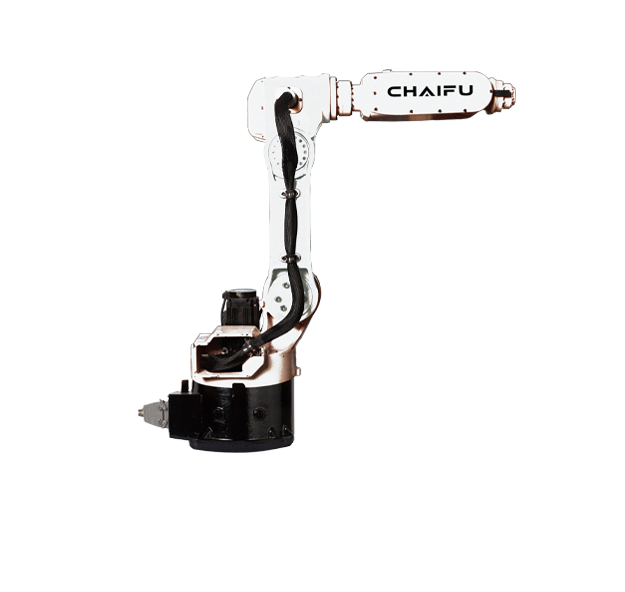

SF8-K950 Specifications
Maximum Radius：
950 mm
Payload：
8 kg
Repeatability：
± 0.08 mm
Protection Rating：
IP 65
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.
PRENTIC Data Overview
SF7-K759 | SF8-K950 | ||
|---|---|---|---|
Structure | Vertical Articulated | Vertical Articulated | |
Number of Axis | 6 | 6 | |
Radius | 737.5mm | 956mm | |
Payload | 7kg | 8kg | |
Repeatability | ±0.04mm | ±0.05mm | |
Drive Mode | AC Servo Motor | AC Servo Motor | |
Maximum Speed | J1 J2 J3 J4 J5 J6 | 305°/s 280°/s 300°/s 300°/s 406°/s 600°/s | 230°/s 230°/s 200°/s 240°/s 400°/s 600°/s |
Range of Motion | J1 J2 J3 J4 J5 J6 | ±171° +65°/-141° +170°/-66° ±180° ±119° ±360° | ±165° +90°/-160° +148°/-89° ±180° ±119° ±360° |
Allowable Moment | J4 J5 J6 | 15.6N·m 15.6N·m 8.5N·m | 15.6N·m 15.6N·m 8.5N·m |
Allowable Inertia | J4 J5 J6 | 0.43kg·m2 0.43kg·m2 0.13kg·m2 | 0.43kg·m2 0.43kg·m2 0.13kg·m2 |
Protection Rating | IP65 | IP65 | |
Operating Conditions | Temperature Humidity Vibration Other | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise |
Base Size | 210*235mm | 280*362mm | |
Height | 880mm | 911.5mm | |
Weight | 48kg | 66kg | |
Mounting Positions | Floor, Wall, Ceiling | Floor, Wall, Ceiling | |
Power Consumption | 1.5kVA | 1.5kVA | |
Advantages
Installation Flexibility
Ensuring reliability and saving space and cost per unit area of work, the PRENTIC can be installed flexibly on floors, walls, ceilings, or even at specific angles.
High Reliability
PRENTIC has a long service life, so there is no need to worry about the benefits of maintenance costs.
High Price /Performance Ratio
With three core technologies, PRENTIC has the lowest purchase price in the industry.
Electrostatic Discharge Protection
It can avoid damage caused by static electricity or discharge and handle sensitive electronic components efficiently and safely.
Diversity of Systems
A wide range of individually developed software packages allows you to find your needs more precisely.
Robust in a Wide Range of Operating Environments
Continuous use over the entire temperature range of 0° to 45°C with a 24-hour standby.
