LOTIC Series
The LOTIC is a series of low payload industrial robots tailored to handle small objects with excellent performance and flexibility at all times.
Features
LOTIC is your indispensable helper in making cost-effective choices with a wide range of products.
With a finely segmented maximum movement radius of 1200 mm and 3100 mm,
you can precisely define the robot you need with excellent performance and stability
while paying less for investment and energy costs.
All LOTIC series are equipped with LIKEPRECISION technology, the ultra-precise RV Precision Gearbox,
which allows the robot to take full advantage even at high operating speeds.
Extremely Compact and Flexible
The compact design and small footprint, with a base size of only 370*370 mm, allows for optimal space utilization in the working area.
Superior Performance
Highly rigid materials and advanced CHAIFU SERVO MOTOR servo control technology for repeatable positioning accuracy of 0.05 mm.
Robustness
The independently developed software package allows you to find your needs more precisely, and it comes out of the factory ready to do its job.
Suitable for Humid and Complex Environments
With its IP 65 protection level, the LOTIC series is ready for 24 hours a day in humid environments.

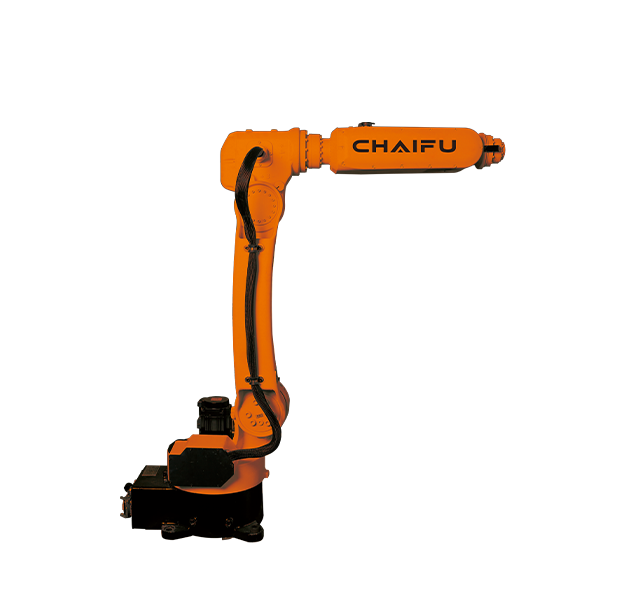

SF6-C1200 Specifications
Maximum Radius:
1200 mm
Payload:
6 kg
Repeatability:
± 0.05 mm
Protection Rating:
IP 65
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.

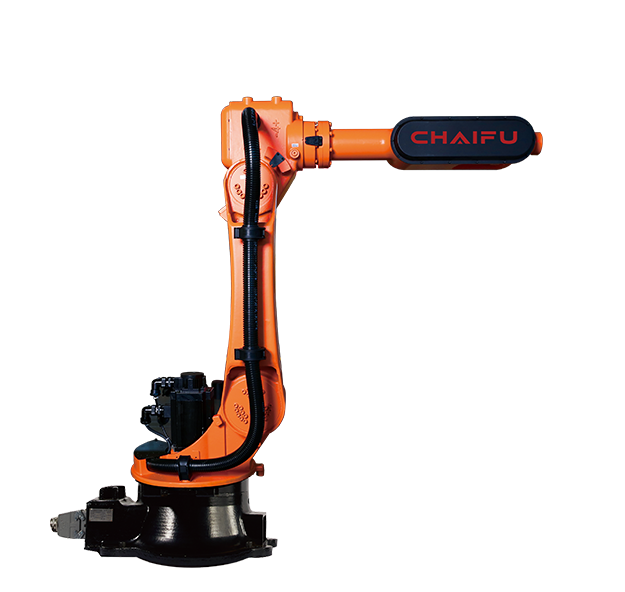

SF10-C1650 Specifications
Maximum Radius:
1650 mm
Payload:
10 kg
Repeatability:
± 0.05 mm
Protection Rating:
IP 65
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.

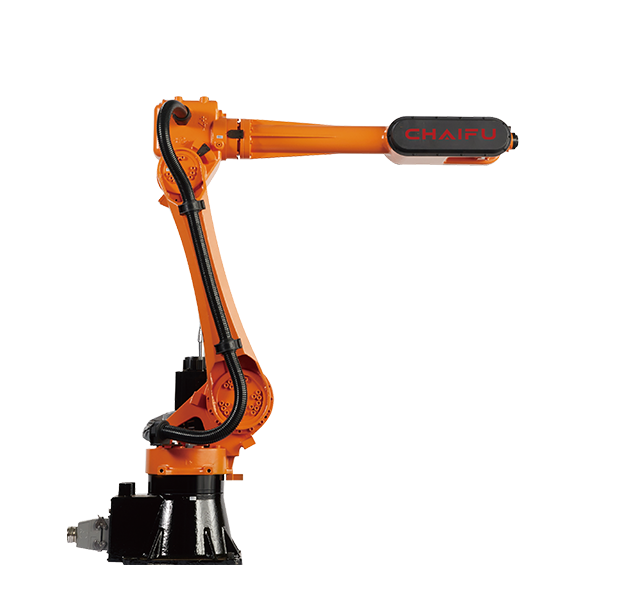

SF10-K2032 Specifications
Maximum Radius:
2032 mm
Payload:
10 kg
Repeatability:
± 0.05 mm
Protection Rating:
IP 65
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.

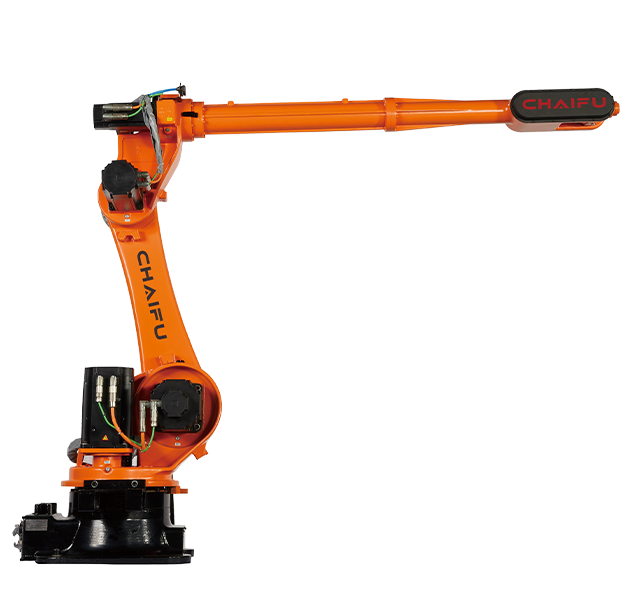

SF10-K3100 Specifications
Maximum Radius:
3100 mm
Payload:
10 kg
Repeatability:
± 0.15 mm
Protection Rating:
IP 65
* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.
In addition, the machine on the picture may include additional equipment.
LOTIC Data Overview
SF6-C1200 | SF10-C1650 | SF10-K2032 | SF10-K3100 | ||
|---|---|---|---|---|---|
Structure | Vertical Articulated | Vertical Articulated | Vertical Articulated | Vertical Articulated | |
Number of Axis | 6 | 6 | 6 | 6 | |
Radius | 1200mm | 1651mm | 2032mm | 3100mm | |
Payload | 6kg | 10kg | 10kg | 10kg | |
Repeatability | ±0.05mm | ±0.05mm | ±0.05mm | ±0.08mm | |
Drive Mode | AC Servo Motor | AC Servo Motor | AC Servo Motor | AC Servo Motor | |
Maximum Speed | J1 J2 J3 J4 J5 J6 | 230°/s 230°/s 200°/s 240°/s 400°/s 600°/s | 150°/s 160°/s 148°/s 300°/s 300°/s 500°/s | 135°/s 135°/s 135°/s 300°/s 300°/s 500°/s | 125°/s 125°/s 140°/s 200°/s 210°/s 290°/s |
Range of Motion | J1 J2 J3 J4 J5 J6 | ±165° +90°/-165° +150°/-90° ±180° ±120° ±360° | ±165° +75°/-125° +145°/-75° ±178° ±125° ±720° | ±175° +68°/-150° +150°/-75° ±178° +135°/-125° ±720° | ±172° +72°/-140° +150°/-80° ±360° +125° ±360° |
Allowable Moment | J4 J5 J6 | 15.6N·m 15.6N·m 8.5N·m | 22N·m 22N·m 10N·m | 22N·m 22N·m 10N·m | 22N·m 22N·m 10N·m |
Allowable Inertia | J4 J5 J6 | 0.43kg·m2 0.43kg·m2 0.13kg·m2 | 1kg·m2 1kg·m2 0.2kg·m2 | 1kg·m2 1kg·m2 0.2kg·m2 | 1kg·m2 1kg·m2 0.2kg·m2 |
Protection Rating | IP65 | IP65 | IP65 | IP65 | |
Operating Conditions | Temp. Humidity Vibration Other | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise | 0-45℃ Below 95%RH Below 4.9m/s2 Eliminate Signal Noise |
Base Size | 280*362mm | 384*384mm | 370*370mm | 573*629mm | |
Height | 1096mm | 1407mm | 1560mm | 1899mm | |
Weight | 72kg | 196kg | 208kg | 596kg | |
Mounting Positions | Floor、Wall、Ceiling | Floor、Wall、Ceiling | Floor、Wall、Ceiling | Floor、Wall、Ceiling | |
Power Consumption | 1.5kVA | 2.5kVA | 3.25kVA | 4.5kVA | |
Applications
Advantages
Mounting Position Flexibility
With reliability, space, and cost savings per working unit area, the LOTIC can be flexibly installed on floors, walls, ceilings, or even at specific angles.
Highest Precision
Extremely fast and precise, the LOTIC series industrial robots have a repeatability of 0.05 mm, allowing them to take full advantage of their performance even at high operating speeds.
Robust Protection
Continuous operation in environments with Relative Humidity (RH) less than or equal to 95%.
System Versatility
A wide range of independently developed software packages allows you to find your needs more precisely.
Workspace Maximization
Maximizes available space and works with maximum accuracy, ensuring high accuracy and production quality.
High Dynamics
The combined effect of all elements reduces axis and shaft beat times, and maximum throughput is increased.
